LSAW Steel Pipe Manufacturers in Zimbabwe, LSAW Steel Pipe Suppliers, Exporters in Zimbabwe

We offer a comprehensive range of stainless steel products in Zimbabwe that are suitable for various industrial applications. Steel Pipe Sourcing is one of the most reliable LSAW Steel Pipe Manufacturers in Zimbabwe. Whether you need stainless steel for construction, manufacturing, or fabrication, we have the right solutions to meet your requirements in Zimbabwe.

LSAW Steel Pipe Suppliers in Zimbabwe

Our experienced team of professionals ensures precise manufacturing processes to deliver superior-quality products in Zimbabwe. As leading LSAW Steel Pipe Suppliers in Zimbabwe, we have a dedicated facility equipped with state-of-the-art machinery and technologies. Trust us as your preferred stainless steel plate, sheet, and coil manufacturers in Zimbabwe.

LSAW Steel Pipe Exporters in Zimbabwe

We have established a strong network of partners in Zimbabwe to provide a wide range of stainless steel products to customers across the country. Steel Pipe Sourcing is one of the most trusted LSAW Steel Pipe Exporters in Zimbabwe. With our efficient supply chain and prompt delivery services in Zimbabwe, we can meet your stainless steel requirements with ease.

Products Related to LSAW Steel Pipe

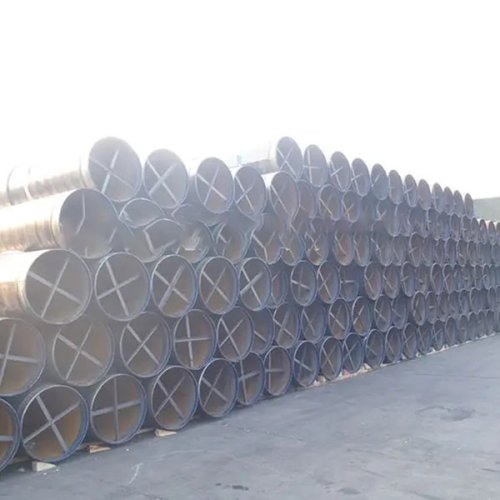

ASTM A672 LSAW STEEL PIPE in Zimbabwe

Size	Standard & Grade	Ends	Coating
OD: 406 - 1422.40mm, WT: 1.65 - 40mm, Length: 6mtr - 20mtr	ASTM A672 Grade A45, A55, B60, B65 etc.	Square Ends / Plain Ends (straight cut, saw cut, torch cut), Beveled / Threaded Ends	3PE Coating; 3PP Coating; FBE Coating; Epoxy Coating; Special Painting

A672 ELECTRIC FUSION WELDED (EFW) STEEL PIPE

American Piping Products stocks A672 EFW pipe in the grades and classes listed on the following tables:

Plate specification
Pipe grade	Type of steel	ASTM specification
		No.	Grade
A 45	plain carbon	A285 / A285M	A
A50	plain carbon	A285 / A285M	B
A 55	plain carbon	A285 / A285M	C
B 60	plain carbon, killed	A515 / A515M	60
B 65	plain carbon, killed	A515 / A515M	65
B 70	plain carbon, killed	A515 / A515M	70
C 55	plain carbon, killed, fine grain	A516 / A516M	55
C 60	plain carbon, killed, fine grain	A516 / A516M	60
C 65	plain carbon, killed, fine grain	A516 / A516M	65
C 70	plain carbon, killed, fine grain	A516 / A516M	70
D 70	manganese-silicon, normalized	A537 / A537M	1
D 80	manganese-silicon, Q&TA	A537 / A537M	2
H 75	manganese-molybdenum, normalized	A302 / A302M	A
H 80	manganese-molybdenum, normalized	A302 / A302M	B, C or D
J 80	manganese-molybdenum, Q&T	A533 / A533M	Cl-1B
J 90	manganese-molybdenum, Q&T	A533 / A533M	Cl-2B
J 100	manganese-molybdenum, Q&T	A533 / A533M	Cl-3B
K 75	chromium-manganese-silicon	A202 / A202M	A
K 85	chromium-manganese-silicon	A202 / A202M	B
L 65	molybdenum	A204 / A204M	A
L 70	molybdenum	A204 / A204M	B
L 75	molybdenum	A204 / A204M	C
N 75	manganese-silicon	A299 / A299M
AQ&T = quenched and tempered BAny grade may be furnished

**Product Description**
Class	Heat treatment of pipe	Radiography	Pressure test
10	none	no	no
11	none	yes	no
12	none	yes	yes
13	none	no	yes
20	stress relieved	no	no
21	stress relieved	yes	no
22	stress relieved	yes	yes
23	stress relieved	no	yes
30	normalized	no	no
31	normalized	yes	no
32	normalized	yes	yes
33	normalized	no	yes
40	normalized and tempered	no	no
41	normalized and tempered	yes	no
42	normalized and tempered	yes	yes
43	normalized and tempered	none	yes
50	quenched and tempered	none	none
51	quenched and tempered	yes	none
52	quenched and tempered	yes	yes
53	quenched and tempered	none	yes

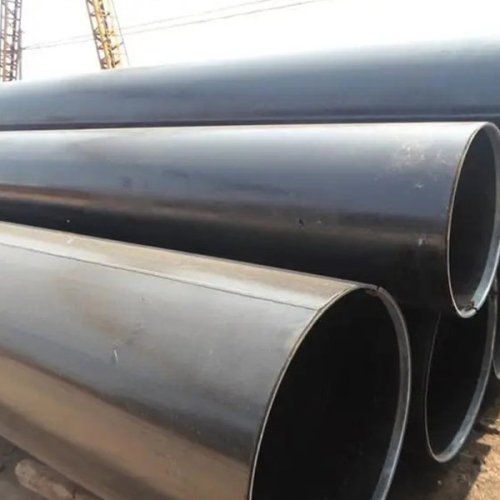

API 5L PSL1 Or PSL2 LSAW STEEL PIPE in Zimbabwe

Size	Standard & Grade	Ends	Coating
OD: 406 - 1422.40mm, WT: 1.65 - 40mm, Length: 6mtr - 20mtr	API 5L PSL1 / PSL2, GR.B, X42, X45, X50, X60, X65, X70, X80	Square Ends / Plain Ends (straight cut, saw cut, torch cut), Beveled / Threaded Ends	3PE Coating; 3PP Coating; FBE Coating; Epoxy Coating; Special Painting

Materials and Manufacture

The steel for both seamless and welded pipe shall be made by one or more of the following processes: open-hearth, electric furnace, or basic-oxygen. The weld seam of electric-resistance welded pipe in Grade B shall be heat treated after welding.

Chemical Requirements	Type S (seamless)		Type E		Type F
Download Chart			(electric- resistance welded)		(furnace- welded pipe)
	Grade A	Grade B	Grade A	Grade B	Grade A
Carbon max. %	0.25	0.30*	0.25	0.30*	0.3
Manganese %	0.95	1.2	0.95	1.2	1.2
Phosphorous, max. %	0.05	0.05	0.05	0.05	0.05
Sulfur, max. %	0	0.045	0.045	0.045	0.045
Copper, max.%	0.4	0.4	0.4	0.4	0.4
Nickel, max. %	0.4	0.4	0.4	0.4	0.4
Chromium, max. %	0.4	0.4	0.4	0.4	0.4
Molybdenum, max. %	0.15	0.15	0.15	0.15	0.15
Vanadium, max. %	0.08	0.08	0.08	0.08	0.08

**Lengths**
Standard Weight
	Single Random — 16′ – 22′. 5% may be jointers. If Plain Ends — 5% may be 12′ – 16′.
	Double Random — Shortest Length 22′, minimum average for order 35′.
Extra Strong and Double Extra Strong
	Single Random — 12′ -22′. 5% may be 6′ – 12′.
	Double Random (XS and lighter) — Shortest Length 22′, minimum average for order 35′.
	Lengths longer than single random with wall thicknesses heavier than XS subject to negotiation.

**Required Markings on Each Length (On Tags attached to each Bundle in case of Bundled Pipe)**
Rolled, Stamped, or Stenciled (Mfrs. Option)
Name brand of manufacturer
Kind of pipe, that is, Continuous Welded, Electric-Resistance-Welded A, Electric-Resistance-Welded B, Seamless A, Seamless B, XS for extra strong, XXS for double extra strong.
ASTM 53
Length of pipe

**General Information**
Couplings — Applied handling tight. Couplings, 2″ and smaller straight tapped, other sizes taper tapped.
Thread Protection — Applied to pipe 4″ and larger.
End Finish (unless otherwise specified) —
	STD or XS, or wall thicknesses less than 0.500 in. (excluding XXS): Plain and beveled
	All XXS and wall thicknesses over 0.500 in.: Plain end square cut.

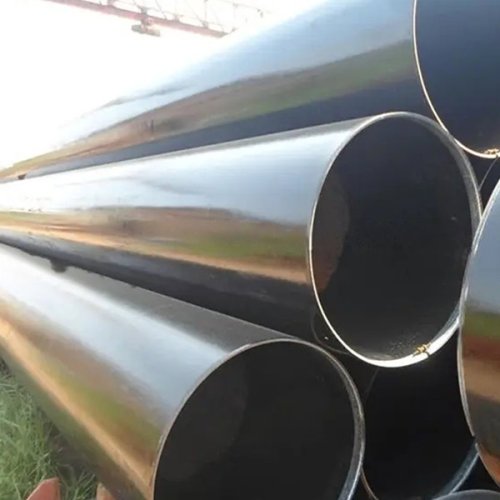

API 5L GR.B LSAW STEEL PIPE in Zimbabwe

Size	Standard & Grade	Ends	Coating
OD: 406 - 1422.40mm, WT: 1.65 - 40mm, Length: 6mtr - 20mtr	API 5L PSL1 / PSL2, GR.B, X42, X45, X50, X60, X65, X70, X80	Square Ends / Plain Ends (straight cut, saw cut, torch cut), Beveled / Threaded Ends	3PE Coating; 3PP Coating; FBE Coating; Epoxy Coating; Special Painting

**STANDARD OF LSAW STEEL PIPE**
Standard	Grade	Chemical Composition(%)				Tensile STrength(min)	Yield Strength(min)
		C Mn P S				Mpa	Mpa
API 5L PSL1	A	0.22	0.9	0.03	0.03	335	210
	B	0	1.2	0.03	0.03	415	245
	X42	0.28	1	0.03	0.03	415	290
	X46	0.28	1.4	0.03	0.03	435	320
	X52	0.28	1. 40	0.03	0.03	460	360
	X56	0.28	1.4	0.03	0.03	490	390
	X60	0.28	1.4	0.03	0.03	520	415
	X65	0.28	1.4	0.03	0.03	535	450
	X70	0.28	1.4	0.03	0.03	570	485
Standard	Grade	Chemical Composition(%)				Tensile STrength	Yield Strength
		C Mn P S				Mpa	Mpa
API 5L PSL2	B	0.24	1.2	0.025	0.015	415-655	245-450
	X42	0.24	1.3	0.025	0.015	415-655	290-495
	X46	0.24	1.4	0.025	0.015	435-655	320-525
	X52	0.24	1. 40	0.025	0.015	460-760	360-530
	X56	0.24	1. 40	0.025	0.015	490-760	390-545
	X60	0.24	1. 40	0.025	0.015	520-760	415-565
	X65	0.24	1.4	0.025	0.015	535-760	450-600
	X70	0.24	1.4	0.025	0.015	570-760	485-635
	X80	0.24	1. 40	0.025	0.015	625-825	555-705

**PSL 1 VS. PSL 2 SPEC SHEET**
PSL 1	PSL 2
Grade range	A25 through X70	GR B through X80	Table 1
Size range	0.405 through 80	4-2/1 through 80	Table 1
Type of pipe ends	Plain-end, threaded-end, bevelled-end, special coupling pipe	Plain-end	Table 1
Seam welding	All methods continous welding limited to Grade A25	All methods except continous and laser welding	Table 1
Electric welds: welder frequency	No minimum	100 kHz minimum	5.1.3.3.2
Heat treatments of electric welds	Required for grades > X42	Required for all grades (GR B through X80)	5.1.3.3.1; J.3.3.2:6.2.7
Chemistry: max C for seamless pipe	0.28% for grades > Gr B	0.24%	Tables 2A, 2B
Chemistry: max C for welded pipe	0.26% for grades > Gr B	0.22%	Tables 2A, 2B
Chemistry: max P	0.03%	0.03%	Tables 2A, 2B
Chemistry: max S	Only when purchases specifies SR18	0.02%	Tables 2A, 2B
Carbon equivalent	None	Maximum required for each grade	4.2:4.3:6.1.3: SR15.1
Yield strength, maximum	None	Maximum for each grade	Tables 3A, 3B
UTS, maximum	None required	Maximum for each grade	Tables 3A, 3B
Fracture toughness	Only when purchaser specifies SR4	Required for all grades	6.2.6; 9.3.5: 9.8.4; 9.10.7;
Non-destructive inspection of seamless pipes	Permitted	SR4 mandatory	Table 14 9.7.2.6
Repare by welding of pipe body, plate and skelp	Permitted by agreement	Prohibited	5.3.2;9.7.6: B.1;B.2
Certification	Certificates when specified per SR15	Prohibited	4.3;9.7.4.4;9.7.6;B.1.2;B.4
Traceability	Traceable only until all tests are passed unless SR15 is specified	Certificates (SR15.1) mandatory Traceable after completion of tests (SR15.2) mandatory	12.1 5.6

**DIMENSION TOLERANCES OF LSAW STEEL PIPE**
Standard	Standard
	SY/T5040-2000	Y/T5037-2000	SY/T9711.1-197	ASTM A252	AWWA C200-9	API 5L PSL1
Tube end OD deviation	± 0.5%D	± 0.5%D	-0.79mmï½ž+2.38	<± 0.1%T	<± 0.1%T	± 1.6mm
Wall thickness	± 10.0%T	D<508mm, ±12.5%T	- 8%Tï½ž+19.5%T	<- 12.5%T	-8%Tï½ž+19.5%T	5.0mm
		D>508mm, ±10.0%T				T≥15.0mm, ±1.5m

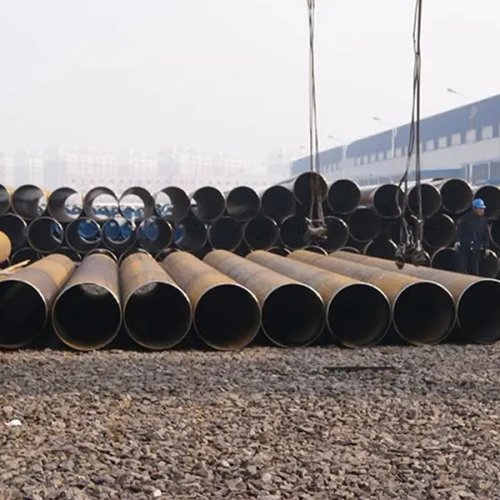

API 5L GR.X42 LSAW STEEL PIPE in Zimbabwe

Size	Standard & Grade	Ends	Coating
OD: 406 - 1422.40mm, WT: 1.65 - 40mm, Length: 6mtr - 20mtr	API 5L PSL1 / PSL2, GR.B, X42, X45, X50, X60, X65, X70, X80	Square Ends / Plain Ends (straight cut, saw cut, torch cut), Beveled / Threaded Ends	3PE Coating; 3PP Coating; FBE Coating; Epoxy Coating; Special Painting

**STANDARD OF LSAW STEEL PIPE**
Standard	Grade	Chemical Composition(%)				Tensile STrength(min)	Yield Strength(min)
		C Mn P S				Mpa	Mpa
API 5L PSL1	A	0.22	0.9	0.03	0.03	335	210
	B	0	1.2	0.03	0.03	415	245
	X42	0.28	1	0.03	0.03	415	290
	X46	0.28	1.4	0.03	0.03	435	320
	X52	0.28	1. 40	0.03	0.03	460	360
	X56	0.28	1.4	0.03	0.03	490	390
	X60	0.28	1.4	0.03	0.03	520	415
	X65	0.28	1.4	0.03	0.03	535	450
	X70	0.28	1.4	0.03	0.03	570	485
Standard	Grade	Chemical Composition(%)				Tensile STrength	Yield Strength
		C Mn P S				Mpa	Mpa
API 5L PSL2	B	0.24	1.2	0.025	0.015	415-655	245-450
	X42	0.24	1.3	0.025	0.015	415-655	290-495
	X46	0.24	1.4	0.025	0.015	435-655	320-525
	X52	0.24	1. 40	0.025	0.015	460-760	360-530
	X56	0.24	1. 40	0.025	0.015	490-760	390-545
	X60	0.24	1. 40	0.025	0.015	520-760	415-565
	X65	0.24	1.4	0.025	0.015	535-760	450-600
	X70	0.24	1.4	0.025	0.015	570-760	485-635
	X80	0.24	1. 40	0.025	0.015	625-825	555-705

**PSL 1 VS. PSL 2 SPEC SHEET**
PSL 1	PSL 2
Grade range	A25 through X70	GR B through X80	Table 1
Size range	0.405 through 80	4-2/1 through 80	Table 1
Type of pipe ends	Plain-end, threaded-end, bevelled-end, special coupling pipe	Plain-end	Table 1
Seam welding	All methods continous welding limited to Grade A25	All methods except continous and laser welding	Table 1
Electric welds: welder frequency	No minimum	100 kHz minimum	5.1.3.3.2
Heat treatments of electric welds	Required for grades > X42	Required for all grades (GR B through X80)	5.1.3.3.1; J.3.3.2:6.2.7
Chemistry: max C for seamless pipe	0.28% for grades > Gr B	0.24%	Tables 2A, 2B
Chemistry: max C for welded pipe	0.26% for grades > Gr B	0.22%	Tables 2A, 2B
Chemistry: max P	0.03%	0.03%	Tables 2A, 2B
Chemistry: max S	Only when purchases specifies SR18	0.02%	Tables 2A, 2B
Carbon equivalent	None	Maximum required for each grade	4.2:4.3:6.1.3: SR15.1
Yield strength, maximum	None	Maximum for each grade	Tables 3A, 3B
UTS, maximum	None required	Maximum for each grade	Tables 3A, 3B
Fracture toughness	Only when purchaser specifies SR4	Required for all grades	6.2.6; 9.3.5: 9.8.4; 9.10.7;
Non-destructive inspection of seamless pipes	Permitted	SR4 mandatory	Table 14 9.7.2.6
Repare by welding of pipe body, plate and skelp	Permitted by agreement	Prohibited	5.3.2;9.7.6: B.1;B.2
Certification	Certificates when specified per SR15	Prohibited	4.3;9.7.4.4;9.7.6;B.1.2;B.4
Traceability	Traceable only until all tests are passed unless SR15 is specified	Certificates (SR15.1) mandatory Traceable after completion of tests (SR15.2) mandatory	12.1 5.6

**DIMENSION TOLERANCES OF LSAW STEEL PIPE**
Standard	Standard
	SY/T5040-2000	Y/T5037-2000	SY/T9711.1-197	ASTM A252	AWWA C200-9	API 5L PSL1
Tube end OD deviation	± 0.5%D	± 0.5%D	-0.79mmï½ž+2.38	<± 0.1%T	<± 0.1%T	± 1.6mm
Wall thickness	± 10.0%T	D<508mm, ±12.5%T	- 8%Tï½ž+19.5%T	<- 12.5%T	-8%Tï½ž+19.5%T	5.0mm
		D>508mm, ±10.0%T				T≥15.0mm, ±1.5m

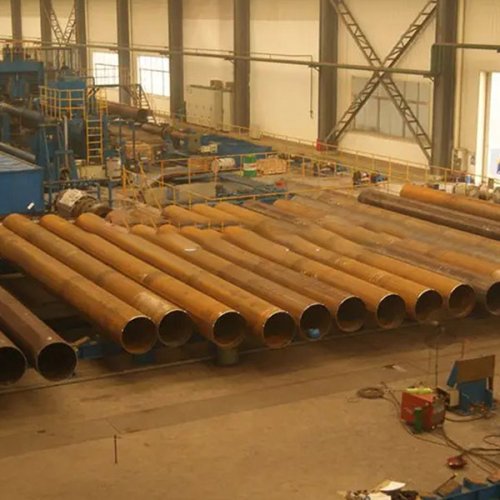

API 5L GR.52 LSAW STEEL PIPE in Zimbabwe

Size	Standard & Grade	Ends	Coating
OD: 406 - 1422.40mm, WT: 1.65 - 40mm, Length: 6mtr - 20mtr	API 5L PSL1 / PSL2, GR.B, X42, X45, X50, X60, X65, X70, X80	Square Ends / Plain Ends (straight cut, saw cut, torch cut), Beveled / Threaded Ends	3PE Coating; 3PP Coating; FBE Coating; Epoxy Coating; Special Painting

**STANDARD OF LSAW STEEL PIPE**
Standard	Grade	Chemical Composition(%)				Tensile STrength(min)	Yield Strength(min)
		C Mn P S				Mpa	Mpa
API 5L PSL1	A	0.22	0.9	0.03	0.03	335	210
	B	0	1.2	0.03	0.03	415	245
	X42	0.28	1	0.03	0.03	415	290
	X46	0.28	1.4	0.03	0.03	435	320
	X52	0.28	1. 40	0.03	0.03	460	360
	X56	0.28	1.4	0.03	0.03	490	390
	X60	0.28	1.4	0.03	0.03	520	415
	X65	0.28	1.4	0.03	0.03	535	450
	X70	0.28	1.4	0.03	0.03	570	485
Standard	Grade	Chemical Composition(%)				Tensile STrength	Yield Strength
		C Mn P S				Mpa	Mpa
API 5L PSL2	B	0.24	1.2	0.025	0.015	415-655	245-450
	X42	0.24	1.3	0.025	0.015	415-655	290-495
	X46	0.24	1.4	0.025	0.015	435-655	320-525
	X52	0.24	1. 40	0.025	0.015	460-760	360-530
	X56	0.24	1. 40	0.025	0.015	490-760	390-545
	X60	0.24	1. 40	0.025	0.015	520-760	415-565
	X65	0.24	1.4	0.025	0.015	535-760	450-600
	X70	0.24	1.4	0.025	0.015	570-760	485-635
	X80	0.24	1. 40	0.025	0.015	625-825	555-705

**PSL 1 VS. PSL 2 SPEC SHEET**
PSL 1	PSL 2
Grade range	A25 through X70	GR B through X80	Table 1
Size range	0.405 through 80	4-2/1 through 80	Table 1
Type of pipe ends	Plain-end, threaded-end, bevelled-end, special coupling pipe	Plain-end	Table 1
Seam welding	All methods continous welding limited to Grade A25	All methods except continous and laser welding	Table 1
Electric welds: welder frequency	No minimum	100 kHz minimum	5.1.3.3.2
Heat treatments of electric welds	Required for grades > X42	Required for all grades (GR B through X80)	5.1.3.3.1; J.3.3.2:6.2.7
Chemistry: max C for seamless pipe	0.28% for grades > Gr B	0.24%	Tables 2A, 2B
Chemistry: max C for welded pipe	0.26% for grades > Gr B	0.22%	Tables 2A, 2B
Chemistry: max P	0.03%	0.03%	Tables 2A, 2B
Chemistry: max S	Only when purchases specifies SR18	0.02%	Tables 2A, 2B
Carbon equivalent	None	Maximum required for each grade	4.2:4.3:6.1.3: SR15.1
Yield strength, maximum	None	Maximum for each grade	Tables 3A, 3B
UTS, maximum	None required	Maximum for each grade	Tables 3A, 3B
Fracture toughness	Only when purchaser specifies SR4	Required for all grades	6.2.6; 9.3.5: 9.8.4; 9.10.7;
Non-destructive inspection of seamless pipes	Permitted	SR4 mandatory	Table 14 9.7.2.6
Repare by welding of pipe body, plate and skelp	Permitted by agreement	Prohibited	5.3.2;9.7.6: B.1;B.2
Certification	Certificates when specified per SR15	Prohibited	4.3;9.7.4.4;9.7.6;B.1.2;B.4
Traceability	Traceable only until all tests are passed unless SR15 is specified	Certificates (SR15.1) mandatory Traceable after completion of tests (SR15.2) mandatory	12.1 5.6

**DIMENSION TOLERANCES OF LSAW STEEL PIPE**
Standard	Standard
	SY/T5040-2000	Y/T5037-2000	SY/T9711.1-197	ASTM A252	AWWA C200-9	API 5L PSL1
Tube end OD deviation	± 0.5%D	± 0.5%D	-0.79mmï½ž+2.38	<± 0.1%T	<± 0.1%T	± 1.6mm
Wall thickness	± 10.0%T	D<508mm, ±12.5%T	- 8%Tï½ž+19.5%T	<- 12.5%T	-8%Tï½ž+19.5%T	5.0mm
		D>508mm, ±10.0%T				T≥15.0mm, ±1.5m

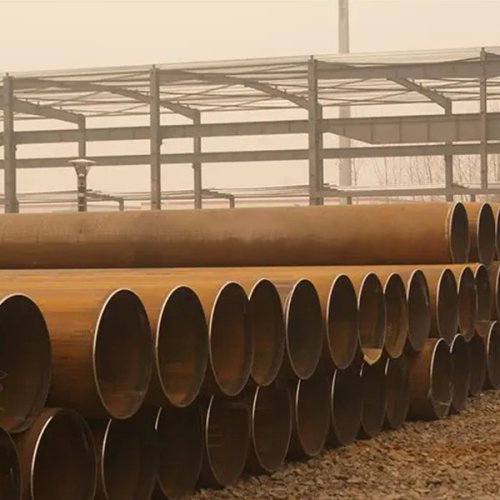

API 5L GR.X56 LSAW STEEL PIPE in Zimbabwe

Size	Standard & Grade	Ends	Coating
OD: 406 - 1422.40mm, WT: 1.65 - 40mm, Length: 6mtr - 20mtr	API 5L PSL1 / PSL2, GR.B, X42, X45, X50, X60, X65, X70, X80	Square Ends / Plain Ends (straight cut, saw cut, torch cut), Beveled / Threaded Ends	3PE Coating; 3PP Coating; FBE Coating; Epoxy Coating; Special Painting

**STANDARD OF LSAW STEEL PIPE**
Standard	Grade	Chemical Composition(%)				Tensile STrength(min)	Yield Strength(min)
		C Mn P S				Mpa	Mpa
API 5L PSL1	A	0.22	0.9	0.03	0.03	335	210
	B	0	1.2	0.03	0.03	415	245
	X42	0.28	1	0.03	0.03	415	290
	X46	0.28	1.4	0.03	0.03	435	320
	X52	0.28	1. 40	0.03	0.03	460	360
	X56	0.28	1.4	0.03	0.03	490	390
	X60	0.28	1.4	0.03	0.03	520	415
	X65	0.28	1.4	0.03	0.03	535	450
	X70	0.28	1.4	0.03	0.03	570	485
Standard	Grade	Chemical Composition(%)				Tensile STrength	Yield Strength
		C Mn P S				Mpa	Mpa
API 5L PSL2	B	0.24	1.2	0.025	0.015	415-655	245-450
	X42	0.24	1.3	0.025	0.015	415-655	290-495
	X46	0.24	1.4	0.025	0.015	435-655	320-525
	X52	0.24	1. 40	0.025	0.015	460-760	360-530
	X56	0.24	1. 40	0.025	0.015	490-760	390-545
	X60	0.24	1. 40	0.025	0.015	520-760	415-565
	X65	0.24	1.4	0.025	0.015	535-760	450-600
	X70	0.24	1.4	0.025	0.015	570-760	485-635
	X80	0.24	1. 40	0.025	0.015	625-825	555-705

**PSL 1 VS. PSL 2 SPEC SHEET**
PSL 1	PSL 2
Grade range	A25 through X70	GR B through X80	Table 1
Size range	0.405 through 80	4-2/1 through 80	Table 1
Type of pipe ends	Plain-end, threaded-end, bevelled-end, special coupling pipe	Plain-end	Table 1
Seam welding	All methods continous welding limited to Grade A25	All methods except continous and laser welding	Table 1
Electric welds: welder frequency	No minimum	100 kHz minimum	5.1.3.3.2
Heat treatments of electric welds	Required for grades > X42	Required for all grades (GR B through X80)	5.1.3.3.1; J.3.3.2:6.2.7
Chemistry: max C for seamless pipe	0.28% for grades > Gr B	0.24%	Tables 2A, 2B
Chemistry: max C for welded pipe	0.26% for grades > Gr B	0.22%	Tables 2A, 2B
Chemistry: max P	0.03%	0.03%	Tables 2A, 2B
Chemistry: max S	Only when purchases specifies SR18	0.02%	Tables 2A, 2B
Carbon equivalent	None	Maximum required for each grade	4.2:4.3:6.1.3: SR15.1
Yield strength, maximum	None	Maximum for each grade	Tables 3A, 3B
UTS, maximum	None required	Maximum for each grade	Tables 3A, 3B
Fracture toughness	Only when purchaser specifies SR4	Required for all grades	6.2.6; 9.3.5: 9.8.4; 9.10.7;
Non-destructive inspection of seamless pipes	Permitted	SR4 mandatory	Table 14 9.7.2.6
Repare by welding of pipe body, plate and skelp	Permitted by agreement	Prohibited	5.3.2;9.7.6: B.1;B.2
Certification	Certificates when specified per SR15	Prohibited	4.3;9.7.4.4;9.7.6;B.1.2;B.4
Traceability	Traceable only until all tests are passed unless SR15 is specified	Certificates (SR15.1) mandatory Traceable after completion of tests (SR15.2) mandatory	12.1 5.6

**DIMENSION TOLERANCES OF LSAW STEEL PIPE**
Standard	Standard
	SY/T5040-2000	Y/T5037-2000	SY/T9711.1-197	ASTM A252	AWWA C200-9	API 5L PSL1
Tube end OD deviation	± 0.5%D	± 0.5%D	-0.79mmï½ž+2.38	<± 0.1%T	<± 0.1%T	± 1.6mm
Wall thickness	± 10.0%T	D<508mm, ±12.5%T	- 8%Tï½ž+19.5%T	<- 12.5%T	-8%Tï½ž+19.5%T	5.0mm
		D>508mm, ±10.0%T				T≥15.0mm, ±1.5m

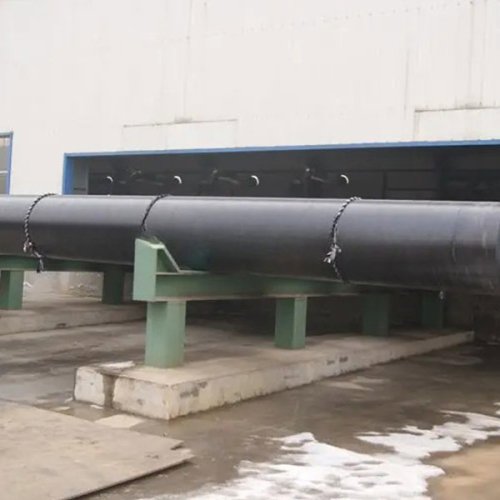

API 5L GR.X60 LSAW STEEL PIPE in Zimbabwe

Size	Standard & Grade	Ends	Coating
OD: 406 - 1422.40mm, WT: 1.65 - 40mm, Length: 6mtr - 20mtr	API 5L PSL1 / PSL2, GR.B, X42, X45, X50, X60, X65, X70, X80	Square Ends / Plain Ends (straight cut, saw cut, torch cut), Beveled / Threaded Ends	3PE Coating; 3PP Coating; FBE Coating; Epoxy Coating; Special Painting

**STANDARD OF LSAW STEEL PIPE**
Standard	Grade	Chemical Composition(%)				Tensile STrength(min)	Yield Strength(min)
		C Mn P S				Mpa	Mpa
API 5L PSL1	A	0.22	0.90	0.030	0.030	335	210
	B	0.28	1.20	0.030	0.030	415	245
	X42	0.28	1.30	0.030	0.030	415	290
	X46	0.28	1.40	0.030	0.030	435	320
	X52	0.28	1. 40	0.030	0.030	460	360
	X56	0.28	1.40	0.030	0.030	490	390
	X60	0.28	1.40	0.030	0.030	520	415
	X65	0.28	1.40	0.030	0.030	535	450
	X70	0.28	1.40	0.030	0.030	570	485
Standard	Grade	Chemical Composition(%)				Tensile STrength	Yield Strength
		C Mn P S				Mpa	Mpa
API 5L PSL2	B	0.24	1.20	0.025	0.015	415-655	245-450
	X42	0.24	1.30	0.025	0.015	415-655	290-495
	X46	0.24	1.40	0.025	0.015	435-655	320-525
	X52	0.24	1. 40	0.025	0.015	460-760	360-530
	X56	0.24	1. 40	0.025	0.015	490-760	390-545
	X60	0.24	1. 40	0.025	0.015	520-760	415-565
	X65	0.24	1.40	0.025	0.015	535-760	450-600
	X70	0.24	1.40	0.025	0.015	570-760	485-635
	X80	0.24	1. 40	0.025	0.015	625-825	555-705

**PSL 1 VS. PSL 2 SPEC SHEET**
	PSL 1	PSL 2
Grade range	A25 through X70	GR B through X80	Table 1
Size range	0.405 through 80	4-2/1 through 80	Table 1
Type of pipe ends	Plain-end, threaded-end, bevelled-end, special coupling pipe	Plain-end	Table 1
Seam welding	All methods continous welding limited to Grade A25	All methods except continous and laser welding	Table 1
Electric welds: welder frequency	No minimum	100 kHz minimum	5.1.3.3.2
Heat treatments of electric welds	Required for grades > X42	Required for all grades (GR B through X80)	5.1.3.3.1; J.3.3.2:6.2.7
Chemistry: max C for seamless pipe	0.28% for grades > Gr B	0.24%	Tables 2A, 2B
Chemistry: max C for welded pipe	0.26% for grades > Gr B	0.22%	Tables 2A, 2B
Chemistry: max P	0.03%	0.03%	Tables 2A, 2B
Chemistry: max S	Only when purchases specifies SR18	0.02%	Tables 2A, 2B
Carbon equivalent	None	Maximum required for each grade	4.2:4.3:6.1.3: SR15.1
Yield strength, maximum	None	Maximum for each grade	Tables 3A, 3B
UTS, maximum	None required	Maximum for each grade	Tables 3A, 3B
Fracture toughness	Only when purchaser specifies SR4	Required for all grades	6.2.6; 9.3.5: 9.8.4; 9.10.7;
Non-destructive inspection of seamless pipes	Permitted	SR4 mandatory	Table 14 9.7.2.6
Repare by welding of pipe body, plate and skelp	Permitted by agreement	Prohibited	5.3.2;9.7.6: B.1;B.2
Certification	Certificates when specified per SR15	Prohibited	4.3;9.7.4.4;9.7.6;B.1.2;B.4
Traceability	Traceable only until all tests are passed unless SR15 is specified	Certificates (SR15.1) mandatory Traceable after completion of tests (SR15.2) mandatory	12.1 5.6

**DIMENSION TOLERANCES OF LSAW STEEL PIPE**
Standard	Standard
	SY/T5040-2000	Y/T5037-2000	SY/T9711.1-197	ASTM A252	AWWA C200-9	API 5L PSL1
Tube end OD deviation	± 0.5%D	± 0.5%D	-0.79mmï½ž+2.38	<± 0.1%T	<± 0.1%T	± 1.6mm
Wall thickness	± 10.0%T	D<508mm, ±12.5%T	- 8%Tï½ž+19.5%T	<- 12.5%T	-8%Tï½ž+19.5%T	5.0mm
		D>508mm, ±10.0%T				T≥15.0mm, ±1.5m

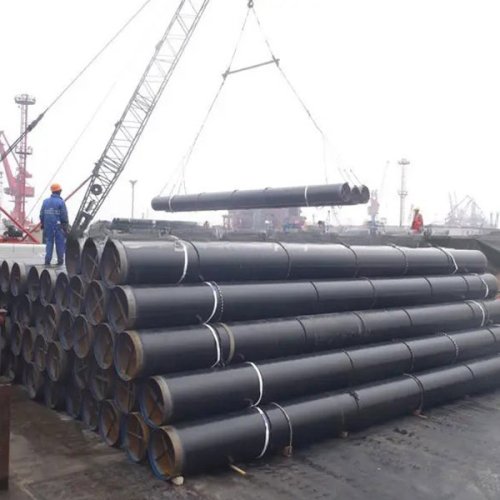

API 5L GR.X65 LSAW STEEL PIPE in Zimbabwe

Size	Standard & Grade	Ends	Coating
OD: 406 - 1422.40mm, WT: 1.65 - 40mm, Length: 6mtr - 20mtr	API 5L PSL1 / PSL2, GR.B, X42, X45, X50, X60, X65, X70, X80	Square Ends / Plain Ends (straight cut, saw cut, torch cut), Beveled / Threaded Ends	3PE Coating, 3PP Coating, FBE Coating, Epoxy Coating, Special Painting

**STANDARD OF LSAW STEEL PIPE**
Standard	Grade	Chemical Composition(%)							Tensile STrength(min)	Yield Strength(min)
		c	Mn		P		S		Mpa	Mpa
API 5L PSL1	A	0.22		0.90		0.030		0.030	335	210
	B	0.28		1.20		0.030		0.030	415	245
	X42	0.28		1.30		0.030		0.030	415	290
	X46	0.28		1.40		0.030		0.030	435	320
	X52	0.28		1. 40		0.030		0.030	460	360
	X56	0.28		1.40		0.030		0.030	490	390
	X60	0.28		1.40		0.030		0.030	520	415
	X65	0.28		1.40		0.030		0.030	535	450
	X70	0.28		1.40		0.030		0.030	570	485

**DIMENSION TOLERANCES OF LSAW STEEL PIPE**
Standard	Standard
	SY/T5040-2000	Y/T5037-2000	SY/T9711.1-197	ASTM A252	AWWA C200-9	API 5L PSL1
Tube end OD deviation	± 0.5%D	± 0.5%D	-0.79mmï½ž+2.38	<± 0.1%T	<± 0.1%T	± 1.6mm
Wall thickness	± 10.0%T	D<508mm, ±12.5%T	- 8%Tï½ž+19.5%T	<- 12.5%T	-8%Tï½ž+19.5%T	5.0mm
		D>508mm, ±10.0%T				T≥15.0mm, ±1.5m

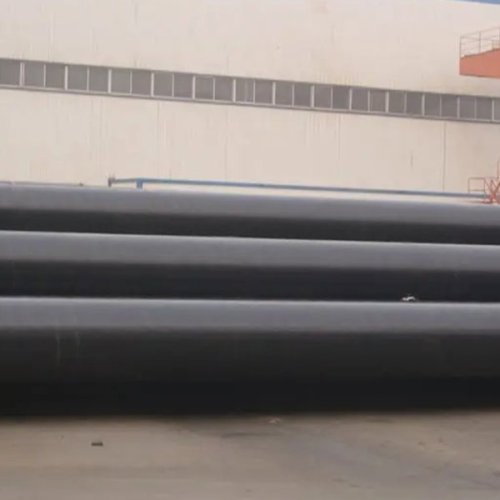

ASTM A252 LSAW STEEL PIPE in Zimbabwe

Size	Standard & Grade	Ends	Coating
OD: 406-1422.40mm, WT: 1.65-40mm, Length: 6mtr - 20mtr	ASTM A250 Grades 1, 2, 3	Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends	3PE Coating, 3PP Coating, FBE Coating, Epoxy Coating, Special Painting

A252 Comparative Specifications

ASTM Specification A252 describes nominal (average) wall steel pipe piles of cylindrical shape and applies to pipe piles in which the steel cylinder acts as a permanent load-carrying member or as a shell to form case-in-place concrete piles.

Surface imperfections exceeding 25% of the nominal wall in depth are considered defects. Defects not exceeding 22.5% of the nominal wall in depth may be repaired by welding. Before welding, the defect shall be completely removed.

**MECHANICAL PROPERTIES – TENSILE REQUIREMENT**
Property	Grade 1	Grade 2	Grade 3
Tensile Strength, min, psi	50,000	60,000	66,000
Yield Strength	30,000	35,000	45,000

**Chemical Requirements for A252**
-	Phosphorus
Seamless and Welded	Max% 0.050

Testing Requirements for Seamless and Welded A252 Steel Piling Pipe

Hydrostatic Testing: Not specified.
Mechanical Tests:
- Tensile Test: Either longitudinal or transverse at the option of the manufacturer.
- Number of Tests: One tensile test per 200 lengths.

Permissible Variations for A252 Steel Piling Pipe

Wall thickness: Not more than 12.5% under the nominal wall thickness specified.
Weights per foot: The weight of any individual length of pipe shall not vary more than 15% over or 5% under the weight specified. Each individual length shall be weighed separately.
Outside diameter: Shall not vary more than plus or minus 1% from the diameter specified.

Lengths of A252 Steel Piling Pipe

Single random: 16’ – 25’ inclusive
Double random: Over 25’ with a minimum average of 35’
Uniform: Plus or minus 1” on length specified

Marking Requirements

Rolled, die-stamped, or paint-stenciled (manufacturer’s option).
Marking Details:
- Manufacturer’s name, brand, or trademark
- Heat number
- Method of pipe manufacture
- Size, weight, length
- Wall thickness
- ASTM A252 and steel grade

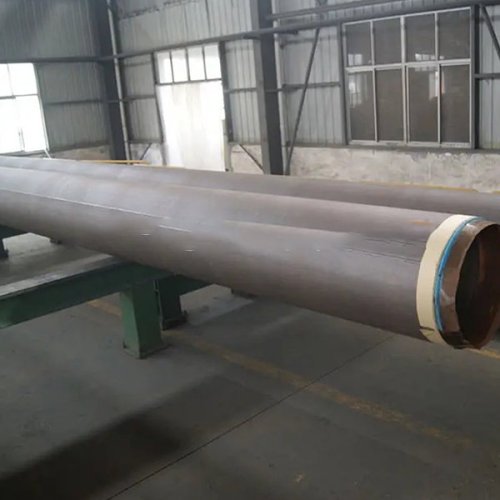

ASTM A572 LSAW STEEL PIPE in Zimbabwe

Specification	Size	Standard & Grade	Ends	Coating
Details	OD: 406-1422.40mm, WT: 1.65-40mm, Length: 6mtr-20mtr	ASTM A572 Grades 42, 50, 55, 60, 65	Square Ends / Plain Ends (Straight Cut, Saw Cut, Torch Cut), Beveled / Threaded Ends	3PE Coating, 3PP Coating, FBE Coating, Epoxy Coating, Special Painting

**Chemical Composition**
Type A	Element	Heat Analysis, %
1	Columbium	0.005-0.05B
2	Vanadium	0.01-0.15C
3	Columbium	0.005-0.05B
4	Vanadium	0.01-0.15C
5	Columbium plus Vanadium	0.02-0.15D
6	Titanium	0.006-0.04
7	Nitrogen	0.003-0.015
8	Vanadium	0.06 max

A: Alloy content shall comply with Type 1, 2, 3, or 5 and shall be on test report.

B: Product analysis limits = 0.004 to 0.06%.

C: Product analysis limits = 0.005 to 0.17%.

D: Product analysis limits = 0.01 to 0.16%.

**Mechanical Properties**
Grade	Yield Point	Tensile Strength	Minimum Elongation (%)
min (ksi)	min (MPa)	min (ksi)	min (MPa)	"in 8 in (200 mm)"	"in 2 in (50 mm)"
42 [290]	42	[290]	60	[415]	20	24
50 [345]	50	[345]	65	[450]	18	21
55 [380]	55	[380]	70	[485]	17	20
60 [415]	60	[415]	75	[520]	16	18
65 [450]	65	[450]	80	[550]	15	17

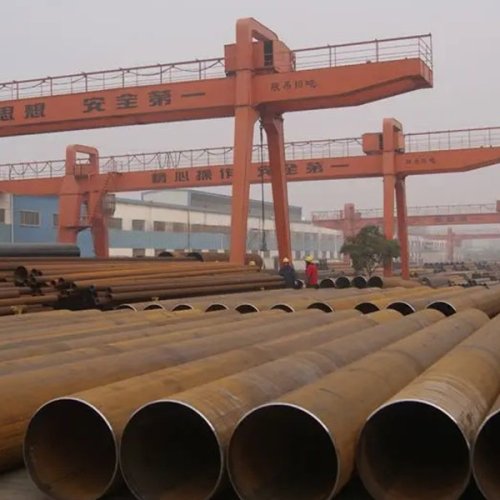

ASTM A671 LSAW STEEL PIPE in Zimbabwe

Specification	Size	Standard & Grade	Ends	Coating
Details	OD: 406-1422.40mm, WT: 1.65-40mm, Length: 6mtr-20mtr	ASTM A671 Grade CA55, CB 60, CB 65, CB 70 etc.	Square Ends / Plain Ends (Straight Cut, Saw Cut, Torch Cut), Beveled / Threaded Ends	3PE Coating, 3PP Coating, FBE Coating, Epoxy Coating, Special Painting

**Pipe Grades**
Pipe Grade	Steel Type	No.	Grade/Class/Type
CA 55	Plain Carbon	A285/A285M	Gr C
CB 60	Plain Carbon, Killed	A515/A515M	Gr 60
CB 65	Plain Carbon, Killed	A515/A515M	Gr 65
CB 70	Plain Carbon, Killed	A515/A515M	Gr 70
CC 60	Plain Carbon, Killed, Fine Grain	A516/A516M	Gr 60
CC 65	Plain Carbon, Killed, Fine Grain	A516/A516M	Gr 65
CC 70	Plain Carbon, Killed, Fine Grain	A516/A516M	Gr 70
CD 70	Manganese-Silicon, Normalized	A537/A537M	Cl 1
CD 80	Manganese-Silicon, Quenched and Tempered	A537/A537M	Cl 2
CFA 65	Nickel Steel	A203/A203M	Gr A
CFB 70	Nickel Steel	A203/A203M	Gr B
CFD 65	Nickel Steel	A203/A203M	Gr D
CFE 70	Nickel Steel	A203/A203M	Gr E
CG 100	9% Nickel	A353/A353M
CH 115	9% Nickel	A553/A553M	Type 1
CJA 115	Alloy Steel, Quenched and Tempered	A517/A517M	Gr A
CJB 115	Alloy Steel, Quenched and Tempered	A517/A517M	Gr B
CJE 115	Alloy Steel, Quenched and Tempered	A517/A517M	Gr E
CJF 115	Alloy Steel, Quenched and Tempered	A517/A517M	Gr F
CJH 115	Alloy Steel, Quenched and Tempered	A517/A517M	Gr H
CJP 115	Alloy Steel, Quenched and Tempered	A517/A517M	Gr P
CK 75	Carbon-Manganese-Silicon	A299/A299M	Gr A
CP 85	Alloy Steel, Age Hardening, Quenched and Precipitation Heat Treated	A736/A736M	Gr A, Class 3

**Pipe Classes**
Class	Heat Treatment on Pipe	Radiography, See Note	Pressure Test, See Note
10	None	None	None
11	None	9	None
12	None	9	8.3
13	None	None	8.3
20	Stress Relieved, See 5.3.1	None	None
21	Stress Relieved, See 5.3.1	9	None
22	Stress Relieved, See 5.3.1	9	8.3
23	Stress Relieved, See 5.3.1	None	8.3
30	Normalized, See 5.3.2	None	None
31	Normalized, See 5.3.2	9	None
32	Normalized, See 5.3.2	9	8.3
33	Normalized, See 5.3.2	None	8.3
40	Normalized and Tempered, See 5.3.3	None	None
41	Normalized and Tempered, See 5.3.3	9	None
42	Normalized and Tempered, See 5.3.3	9	8.3
43	Normalized and Tempered, See 5.3.3	None	8.3
50	Quenched and Tempered, See 5.3.4	None	None
51	Quenched and Tempered, See 5.3.4	9	None
52	Quenched and Tempered, See 5.3.4	9	8.3
53	Quenched and Tempered, See 5.3.4	None	8.3
70	Quenched and Precipitation Heat Treated	None	None
71	Quenched and Precipitation Heat Treated	9	None
72	Quenched and Precipitation Heat Treated	9	8.3
73	Quenched and Precipitation Heat Treated	None	8.3

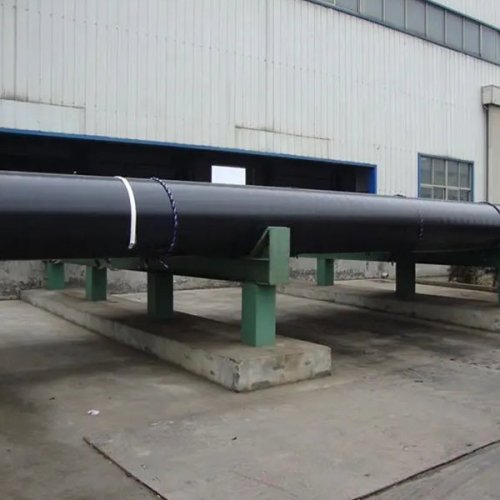

EN 10219-2 LSAW STEEL PIPE in Zimbabwe

Specification	Size	Standard & Grade	Ends	Coating
Details	OD: 406-1422.40mm, WT: 1.65-40mm, Length: 6mtr-20mtr	EN10219 Grade S235JRH, S275JOH, S275J2H, S355JOH, S355J2H, S355K2H	Square Ends / Plain Ends (Straight Cut, Saw Cut, Torch Cut), Beveled / Threaded Ends	3PE Coating, 3PP Coating, FBE Coating, Epoxy Coating, Special Painting

**Chemical Analysis**
Steel Grade	Steel Number	Type of De-oxidation	C (%)	Si (%)	Mn (%)	P (%)	S (%)	Nb (%)
S235JRH	1.0039	FF	0.17	—	1.40	0.040	0.040	0.009
S275J0H	1.0149	FF	0.20	—	1.50	0.035	0.035	0.009
S275J2H	1.0138	FF	0.20	—	1.50	0.030	0.030	—
S355J0H	1.0547	FF	0.22	0.55	1.60	0.035	0.035	0.009
S355J2H	1.0576	FF	0.22	0.55	1.60	0.030	0.030	—
S355K2H	1.0512	FF	0.22	0.55	1.60	0.030	0.030	—

**EN 10219 Mechanical Properties**
Steel Grade	Steel Number	Minimum Yield Strength (ReH) MPa	Tensile Strength (Rm) MPa	Minimum Elongation (Ad) %	Minimum Impact Energy (KVe) J	Specified Thickness (mm)	Test Temperature
S235JRH	1.0039	235	360-510	24	27	£ 16	-20°C
S275J0H	1.0149	275	430-580	20	27	£ 16	-20°C
S275J2H	1.0138	—	—	27	—	—	-
S355J0H	1.0547	355	510-680	20	27	£ 16	-20°C
S355J2H	1.0576	—	—	27	—	—	-
S355K2H	1.0512	40	—	—	—	—	-

Read More Enquire Now

ASTM Stainless Steel Pipes Tubes

Our pipes are manufactured using high-quality stainless steel materials and adhere to stringent ASTM standards to ensure superior performance in various industries in Zimbabwe. Steel Pipe Sourcing is one of the leading ASTM Stainless Steel Pipes Tubes Manufacturers in Zimbabwe.

Read More Enquire Now

Branded Stainless Steel Pipes Tubes

Our branded pipes are known for their exceptional quality, reliable performance, and durability. Steel Pipe Sourcing offers a wide range of Branded Stainless Steel Pipes Manufacturers in Zimbabwe. We partner with renowned manufacturers who specialize in producing high-grade stainless steel pipes under well-established brand names.

Read More Enquire Now

Carbon Seamless Steel Pipe

Steel Pipe Sourcing operates as a leading steel industry providers who provide superior steel pipes to multiple industrial markets in Zimbabwe. If you are looking for the best Carbon Seamless Steel Pipe Manufacturers in Zimbabwe, despite being based in Mumbai, we produce seamless pipes through advanced technology and specialized expertise to fulfill international standards.

Read More Enquire Now

Carbon Steel Tube

Our carbon steel tubes are widely used in various industries for structural, mechanical, and general engineering purposes in Zimbabwe. Steel Pipe Sourcing offers a comprehensive range of high-quality Carbon Steel Tube and is ranked as the top-notch Carbon Steel Tube Manufacturers in Zimbabwe.

Read More Enquire Now

Carbon Welded Steel Pipe

Steel Pipe Sourcing operates as a premier steel pipe provider dedicated to delivering engineered products for different industrial requirements in Zimbabwe.

Read More Enquire Now

Casing and Tubing

At Steel Pipe Sourcing, we take immense pride in offering a comprehensive range of high-quality Casing and Tubing solutions in Zimbabwe that cater to diverse industrial needs. As a prominent name for Casing and Tubing Manufacturers in Zimbabwe, we have established ourselves as a reliable and trusted source for premium products in the region.

Read More Enquire Now

Duplex Steel Plate Sheet Coil

We offer a comprehensive range of stainless steel products in Zimbabwe that are suitable for various industrial applications. Steel Pipe Sourcing is one of the most reliable Duplex Steel Plate Sheet Coil Manufacturers in Zimbabwe. Whether you need stainless steel for construction, manufacturing, or fabrication.

Read More Enquire Now

Duplex Super Duplex Pipes Tubes

Read More Enquire Now

ERW Stainless Steel Pipes Tubes

We offer a comprehensive range of high-quality Jindal stainless steel pipes that are manufactured using advanced technology and state-of-the-art machinery. Steel Pipe Sourcing is your trusted destination for Jindal Stainless Steel ERW Pipes Manufacturers in Zimbabwe.

Read More Enquire Now

Flanges

We offer a comprehensive range of stainless steel products in Zimbabwe that are suitable for various industrial applications. Steel Pipe Sourcing is one of the most reliable Flanges Manufacturers in Zimbabwe. Whether you need stainless steel for construction, manufacturing, or fabrication, we have the right solutions to meet your requirements in Zimbabwe.

Read More Enquire Now

Inconel Monel Hastelloy

Inconel offers excellent heat and oxidation resistance, Monel exhibits superior strength and durability, while Hastelloy provides exceptional resistance to a wide range of corrosive environments in Zimbabwe.Steel Pipe Sourcing is one of the most reliable Inconel Monel Hastelloy Manufacturers in Zimbabwe.

Read More Enquire Now

Pipe Fittings

Our pipe fittings are manufactured using premium materials, ensuring durability and reliability in Zimbabwe. Steel Pipe Sourcing is one of the most prominent Pipe Fittings Manufacturers in Zimbabwe.We offer a wide range of pipe fittings that are designed to meet diverse industrial requirements in Zimbabwe.

Read More Enquire Now

Seamless Stainless Steel Pipes Tubes

We offer a comprehensive range of stainless steel products in Zimbabwe that are suitable for various industrial applications. Steel Pipe Sourcing is one of the most reliable Seamless Stainless Steel Pipes Tubes Manufacturers in Zimbabwe. Whether you need stainless steel for construction, manufacturing, or fabrication.

Read More Enquire Now

Spiral Steel Pipe

Steel Pipe Sourcing provides durable steel pipes for different industrial applications in Zimbabwe. If you are looking for top-notch Spiral Steel Pipe Manufacturers in Zimbabwe.

Read More Enquire Now

Square Pipe

Our square pipe has been designed for transporting fluids, gases, and substances in Zimbabwe due to its resistance to high pressure, corrosion, and extreme temperatures. Steel Pipe Sourcing is one of the premier Square Pipe Manufacturers in Zimbabwe, offering a wide variety of Square Pipe.

Read More Enquire Now

SSAW Steel Pipe

Read More Enquire Now

Stainless Steel Decorative Profiles

Our decorative profiles are designed to add a touch of elegance and sophistication to architectural and interior design projects in Zimbabwe. Steel Pipe Sourcing is one of the leading Stainless Steel Decorative Profiles Manufacturers in Zimbabwe. Made from high-quality stainless steel, these profiles are durable, corrosion-resistant, and visually appealing in Zimbabwe.

Read More Enquire Now

Stainless Steel Pipes Tubes

We offer a wide range of seamless pipes and tubes that are manufactured using high-quality stainless steel. Steel Pipe Sourcing is a trusted provider of Stainless Steel Pipes Tubes in Zimbabwe. Our seamless stainless steel pipes and tubes are known for their excellent strength, corrosion resistance, and durability.

Read More Enquire Now

Stainless Steel Plate Sheet Coil

We offer a comprehensive range of stainless steel products in Zimbabwe that are suitable for various industrial applications. Steel Pipe Sourcing is one of the most reliable Stainless Steel Plate Sheet Coil Manufacturers in Zimbabwe. Whether you need stainless steel for construction, manufacturing, or fabrication.

Read More Enquire Now

Structural Steel Hollow Sections

Steel Pipe Sourcing functions as a leading organization which provides exceptional steel hollow sections for structural purposes in Zimbabwe. If you are looking for top-notch Structural Steel Hollow Sections Manufacturers in Zimbabwe.

Read More Enquire Now

Welded Stainless Steel Pipes Tubes

Our welded stainless steel pipes are manufactured using advanced welding techniques and high-quality stainless steel material. Steel Pipe Sourcing offers a wide range of Welded Stainless Steel Pipe Manufacturers in Zimbabwe. These pipes are known for their excellent strength, durability, and corrosion resistance.

Read More Enquire Now
